Specifications for  - JBL Cinema SB590 Deep Bass 3.1 Channel Home

Theatre General Specifications

Model   - CINEMA SB590

Sound system  -  3.1 channel

Power supply   - 100 - 240V AC, ~ 50/60Hz

Total speaker power output (Max @THD 1%)  - 440W

Soundbar output power (Max @THD 1%)  - 240W

Subwoofer output power (Max. @THD 1%)   -  200W

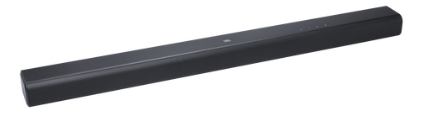

Soundbar transducer    - 3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters

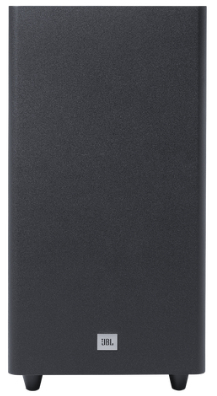

Subwoofer transducer    - 6.5” (165 mm), wireless subwoofer

Standby power  -   0.5 W

Operating temperature   - 0°C - 45 °C

Audio Specifications       -  Frequency response

40Hz-20kHz (-10dB)       -   Audio inputs

Dimensions

Soundbar dimensions (W x H x D)  - 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’

Subwoofer dimensions (W x H x D)  - 200 x 404 x 250 mm / 7.9" x 15.9" x 9.9"

Soundbar weight    - 2.6kg / 5.7 lbs

Subwoofer weight   -  5.7 kg / 12.6 lbs

Packaging dimensions (W x H x D)  - 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"

Packaging Weight     - 10.4 kg / 22.9lbs

Control and Connection Specifications

USB port     - Type A

USB rating   - 5V DC, 0.5A

Supporting file formats   - mp3

MP3 codec    - MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate    - 16 - 48 kHz

Bluetooth version   -  5.3

Bluetooth profile   - A2DP 1.3, AVRCP 1.6

Bluetooth transmitter frequency range   - 2400 MHz – 2483.5 MHz

Bluetooth Max. transmitting power   -   10 dBm (EIRP)

Bluetooth modulation     -  GFSK, π/4 DQPSK, 8DPSK

2.4G wireless transmitter frequency range   -  2402-2481 MHz

2.4G wireless transmitter power      -   10dBm (EIRP?

2.4G wireless modulation       - GFSK

Video Specifications

HDMI video input          -   1

HDMI video output (with Enhanced Audio Return Channel, eARC)    - 1

HDMI HDCP version                 -             2.3

What's in the box

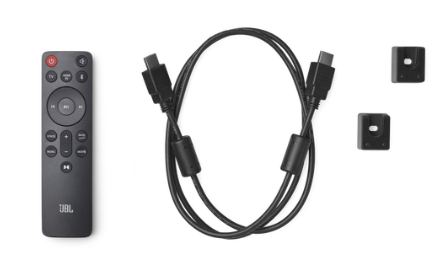

Soundbar, Wireles subwoofer, Remote control with batteries, Power cords (up to 8pcs , pending on region SKUs), HDMI cable, Wall-mount bracket kit with screws, Quick start guide, Warranty card, Safety sheet
